PVC Film Explained: Types, Uses & Food-Grade Compliance

Quick answer: PVC film is thin sheet made from polyvinyl chloride resin, and it splits into two families that behave nothing alike: flexible (plasticized) PVC film — 8-500 microns, bends without cracking, self-clings, used for food wrap, medical sheet and agricultural mulch — and rigid (unplasticized) PVC film — 150 microns to several millimeters, stiff, thermoformable, used for signage, blister packaging and window graphics. The two are made on different equipment from the same base resin with a different additive package. Food-grade flexible PVC film must comply with 21 CFR 178.3740 in the US (not 21 CFR 177.1580, a citation we see misquoted across the industry) or EU Regulation 10/2011 in Europe. This guide covers both families, where each is actually used, and what the food-contact rules require.

We calender and extrude PVC and PE food film in the Ningbo Qianwan New Area, 40 km from Ningbo-Zhoushan port, and have supplied supermarket chains and food processors in more than 50 countries for over 20 years. We wrote this because “PVC film” is one search term covering at least six genuinely different products — a buyer researching food wrap and a buyer researching window signage vinyl land on the same generic pages, get generic answers, and neither gets what they need. This article separates the categories first, then goes deep on the one we manufacture: food-grade flexible PVC film.

What Is PVC Film Made Of?

Polyvinyl chloride is a thermoplastic resin produced by polymerizing vinyl chloride monomer. On its own, PVC resin is a rigid, brittle powder — it becomes “film” only after it’s compounded with additives and processed into thin sheet by calendering (passing hot compound between a series of heated rollers, the standard method for both rigid and flexible film 20 microns and up) or extrusion (forcing molten compound through a flat die, more common for thicker rigid sheet and profile).

The additive package is what determines everything downstream:

• Plasticizer (25-45% by weight for flexible film, under ~5% for rigid): lowers the glass transition temperature so the polymer chains can slide past each other, which is what makes the film bendable instead of brittle. Food-contact grades use ATBC (acetyl tributyl citrate) or DOA (dioctyl adipate); older or non-food formulations may use DEHA or phthalate-based plasticizers, which face tighter migration limits or outright restriction depending on jurisdiction.
• Heat stabilizer: PVC degrades and releases hydrogen chloride above roughly 160-180°C during processing and again in service if it’s overheated (this is also why a tray-sealer plate set too hot will corrode over time — see our machine-grade cling film guide for the numbers). Calcium-zinc stabilizers are standard for food-contact film; older tin- or lead-based stabilizers are being phased out globally.
• Impact modifier and filler (rigid film only): added to compensate for the stiffness that plasticizer would otherwise soften, and to hit a target sheet weight and cost.

Same resin, opposite additive strategy — which is the whole reason “rigid PVC film” and “flexible PVC film” need separate specification sheets, not one.

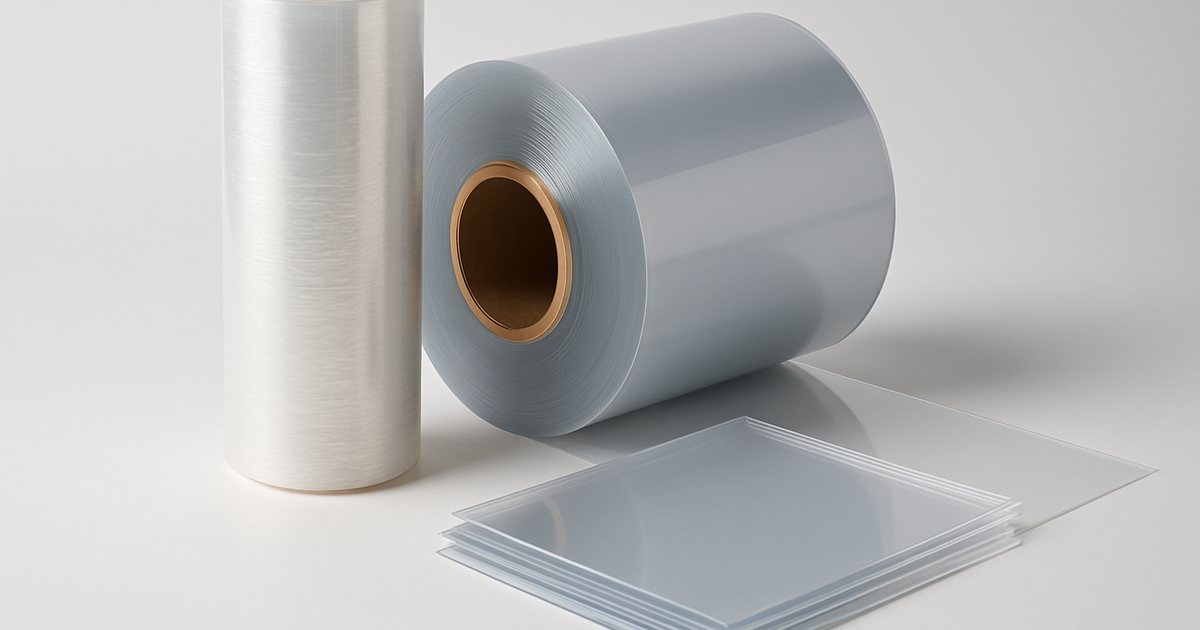

Rigid PVC Film vs Flexible PVC Film

This is the split that most “what is PVC film” content skips, and it’s the reason generic PVC film pages rank poorly for specific buyer questions — the search intent behind “PVC film applications” usually depends on which of these two the searcher actually means.

	Flexible (Plasticized) PVC Film	Rigid (Unplasticized/uPVC) Film
Plasticizer content	25-45%	0-5%
Typical thickness	8-500 microns	150 microns - 6mm
Feel	Soft, clings to itself, stretches	Stiff, holds a shape, does not cling
Main process	Calendering (thin) or casting	Calendering or extrusion
Primary uses	Food wrap, medical sheet, mulch film, tape carrier	Signage, blister packaging, window/door profile, packaging boxes
Food contact status	Can be food-grade with the right plasticizer + testing	Rarely food-contact — used for non-food packaging and rigid trays
Recyclability marking	Usually unmarked or #3 with caveats	Often marked #3 (PVC/uPVC)

If a supplier’s quote for “PVC film” doesn’t specify which side of this table it falls on, the thickness number alone won’t tell you what you’re buying — a 0.3mm rigid film and a 0.3mm… doesn’t really exist, because flexible film almost never runs that thick and rigid film almost never runs that thin. The categories rarely overlap in practice.

Where Is PVC Film Actually Used?

Real applications, grouped by which family they belong to and what thickness they run:

Industry / Use	Film Type	Typical Thickness	Why PVC Specifically
Supermarket / foodservice tray wrap	Flexible	8-15 microns	Strongest self-cling and clarity of any common food film
Cling film jumbo rolls (rewinding)	Flexible	8-10 microns	Consistent gauge for downstream slitting
Agricultural mulch / greenhouse film	Flexible	20-40 microns	Cost, UV stabilization options, weatherability
Medical tubing, blood bag sheet, blister lidding	Flexible/semi-rigid	100-300 microns	Clarity, sterilizability, weld strength
Adhesive tape carrier (masking, electrical)	Flexible	50-150 microns (unplasticized or lightly plasticized)	Conformability, tear resistance
Signage, banners, window graphics	Rigid	150-500 microns	Printability, dimensional stability
Blister packaging (retail, pharma)	Rigid	250 microns - 1mm	Thermoformability, clarity, barrier
Binding covers, ID cards, stationery	Rigid	150-500 microns	Stiffness, print quality, durability
Window and door profile film lamination	Rigid	60-200 microns	Weatherability, color stability

Notice how little overlap there is between rows. A factory set up for 10-micron food cling film calendering lines has no equipment in common with a factory extruding 3mm rigid sheet for blister packs — they’re different businesses that happen to share a resin name. We only manufacture the flexible, food-contact side of this table.

Is PVC Film Food Safe? What the Regulations Actually Require

This is the question with the most misinformation online, including — we’ll say it plainly — on some of our own earlier articles. The correct US citation for food-contact PVC film and its plasticizers is 21 CFR 178.3740 (“Plasticizers in food-contact substances”). 21 CFR 177.1580 is a different section entirely — it governs polycarbonate resins, not PVC — and we’ve found it misquoted for PVC film across a number of industry sites, ourselves included at one point. If a supplier’s compliance sheet cites 177.1580 for a PVC product, that’s worth asking about directly.

In the EU, food-contact PVC film falls under the framework Regulation (EC) No 1935/2004 and the specific measures in Regulation (EU) No 10/2011, which sets specific migration limits (SML) for individual substances plus an overall migration limit (OML):

• DEHA (di-2-ethylhexyl adipate): SML 18 mg/kg
• ATBC (acetyl tributyl citrate): SML 60 mg/kg
• Overall migration limit, all substances combined: 10 mg/dm² of food contact surface

Three things worth knowing as a buyer, not just a compliance checkbox:

1. “PVC” and “food-safe PVC” are not the same claim. The base resin is inert; the plasticizer system is what determines compliance, and it varies by supplier and even by production batch if the formulation isn’t controlled.
2. Phthalate-based plasticizers (DEHP, DBP, BBP) are restricted or banned in food-contact PVC in most markets, including the EU and US. Reputable manufacturers moved to ATBC or DOA years ago; asking “which plasticizer” is the fastest way to screen out a supplier still using older phthalate chemistry.
3. A declaration of compliance without a migration test report is a promise, not evidence. Ask for the actual test data tied to the plasticizer named in the declaration, run against the food type and temperature you’ll actually use the film for.

PVC Film vs PE Film vs PVDC Film for Food Contact

Buyers researching “is PVC food grade” are usually one step away from choosing between the three films that dominate food wrap:

	PVC Film	PE Film	PVDC Film
Self-cling	Strongest	Weak (needs cling additive)	Moderate
Clarity	Excellent	Good	Excellent
Oxygen barrier	Moderate	Poor	Very high
Microwave safe	No	Yes	Limited (check spec)
Freezer safe	Short-term only	Yes	Yes
Typical thickness (food wrap)	8-15 microns	10-15 microns	9-12 microns
Relative cost	Baseline	Similar or slightly lower	Higher
Best fit	Supermarket meat/produce display	Home/foodservice, freezer items	High-barrier deli/cheese wrapping

Most B2B importers stock both PVC and PE to cover different retail segments rather than picking one — our PVC vs PE technical comparison breaks down the decision by market and use case in more depth, and our PVC wrap film guide covers thickness selection and pricing specifically for the food-grade cling film product.

How Flexible PVC Film Is Manufactured

Flexible PVC film for food contact is almost always calendered, not extruded. Resin, plasticizer and stabilizers are dry-blended, fluxed into a molten compound, then passed through a stack of heated, precisely-gapped rollers that squeeze it down to final gauge — the roller gap, not a die, sets the thickness, which is why calendering holds tighter tolerances than blown extrusion at very thin gauges (8-15 microns). The film is then cooled, wound onto cores, and slit to width. For a full walkthrough of the process including quality control checkpoints, see our cling film manufacturing guide.

Rigid PVC film and thicker sheet is more often extruded through a flat die, since dimensional stability matters more than the extreme thinness calendering is optimized for.

What to Check Before You Buy PVC Film From a Manufacturer

If you’re sourcing food-grade flexible PVC film specifically, the specification sheet should answer six questions before you compare price per kilo:

1. Thickness and tolerance — 8-15 microns for food wrap, ±10-15% for hand-wrap grade or ±5% for machine-grade
2. Plasticizer system named explicitly — ATBC or DOA, with a migration test report, not just “FDA compliant”
3. Regulatory citation correct for your market — 21 CFR 178.3740 for the US, EU 10/2011 for Europe
4. Core size and roll dimensions that match your dispenser or wrapping equipment
5. MOQ and lead time — expect 5 metric tons per specification or one 20ft container as a standard minimum, 15-20 days lead time for stock specs
6. Sample availability before committing to a full container

Our PVC cling film and PE cling film product pages carry current specs and pricing bands, and our OEM/private-label program covers printed cores, custom widths and retail packaging if you’re building your own brand rather than reselling in bulk.
